Maxillary Molar Treatment with Indirect Vision : A Step-by-Step Guide

Discover essential strategies for treating maxillary molars using indirect vision. Learn how to position patients, use mirrors, and maintain ergonomic posture with dental loupes and microscopes.
MirrorWorks Dental's avatar
May 03, 2025
Maxillary Molar Treatment with Indirect Vision : A Step-by-Step Guide

Treating maxillary molars is one of the biggest visual challenges in dentistry. These teeth sit in the upper back of the mouth and can be hard to access due to their position behind the cheeks and limited mouth opening. So, how do we work with precision in a space we can barely see?

The answer lies in mastering indirect vision.

Step 1: Building Your Visual Strategy

Clinical visibility is not just about better lighting. It’s about combining three key elements:

  1. Proper positioning – of both the patient and the operator

  2. Smart mirror use – placed to reflect the target area into your field of view

  3. Good posture – maintained by trusting the mirror, not your neck

This isn't a skill you master in a day. But over time, you’ll find yourself treating precisely, while sitting upright and pain-free.

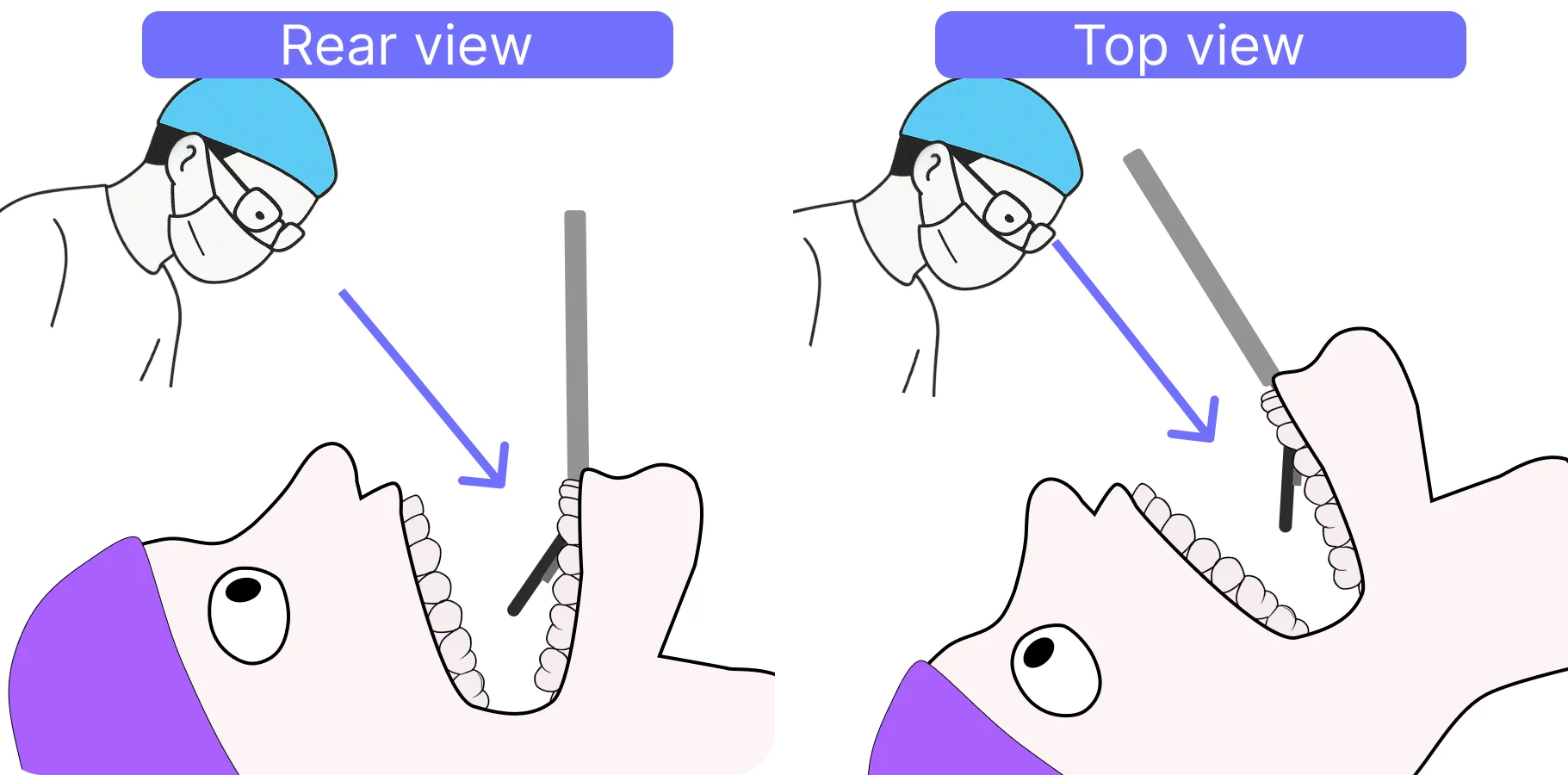

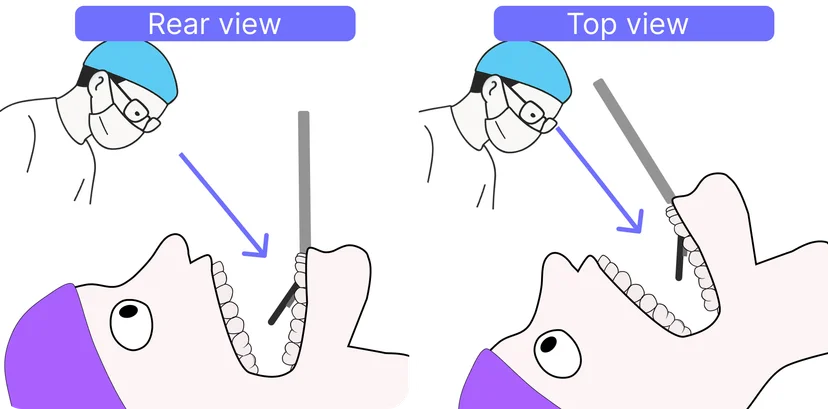

Step 2: Understanding Visual Angles – Top View vs Rear View

When working on maxillary molars, your visual approach can fall into two main categories:

  • Top View: A mixed view. You’re trying to see both the mirror and the real tooth directly.

  • Rear View: A true indirect vision approach. You rely only on the mirror’s reflection.

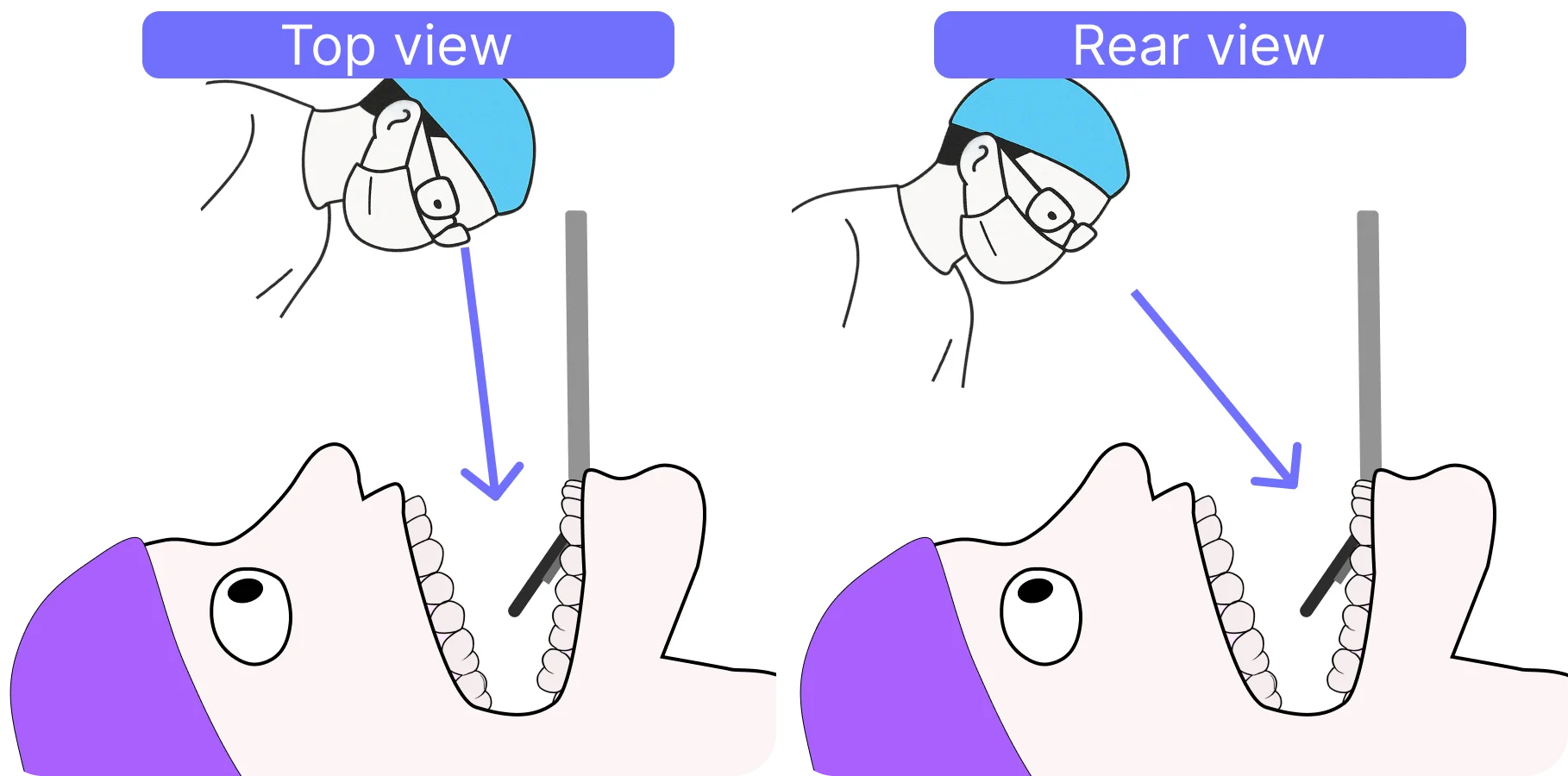

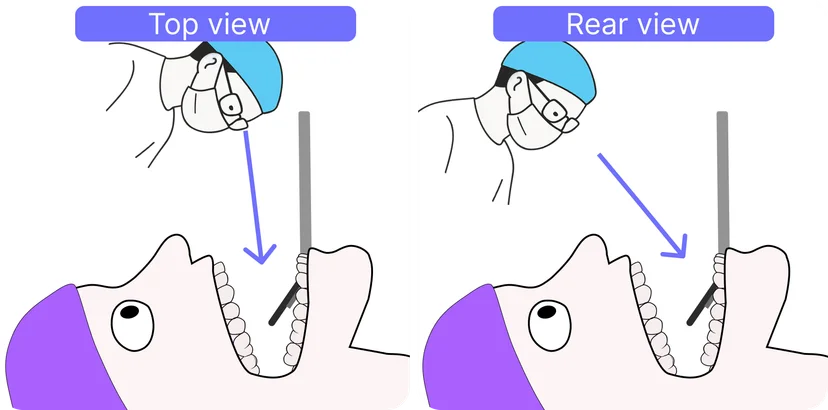

Maxilla indirect vision
Maxilla indirect vision: top view vs rear view.

Which is better?

🔰 Top View is common among beginners. It feels safer, but it often forces you to bend your neck too far, leading to poor posture and long-term musculoskeletal stress.

Excessively bending the neck to secure a better view can lead to musculoskeletal disorders over time.

Rear View, used by experienced clinicians, allows full reliance on the mirror. You stay upright, reduce strain, and keep your hands more stable.

Regardless of the viewing angle, proper patient positioning and visual alignment are key to maintaining an ergonomic working posture.

📌 Tip: Tilt the patient’s head back to open the visual corridor. Don’t tilt yours forward.


Step 3: The Role of Magnification – Loupes and Microscopes

Dental loupes and microscopes are not just for magnification—they redefine how you see and move.

  • With loupes, you can customize your working distance and viewing angle to match your ergonomic posture.

  • With microscopes, your eyes stay fixed on the eyepiece while the objective lens adjusts to the clinical field—helping you maintain posture and control.

These tools make it possible to maintain a neutral spine, reduce fatigue, and work longer with more precision.


Step 4: Operator Position – 12 o’clock vs 10 o’clock

Your seat position relative to the patient directly affects what you see in the mirror.

At 12 o’clock (behind the patient):

  • Ideal for viewing occlusal surfaces

  • The mirror reflects a top-down view

  • Useful for occlusal caries removal and broad field visibility

At 10 o’clock (diagonally behind the patient):

  • Better access to palatal grooves, mesial/distal walls

  • Mirror can be placed lower (floor of the mouth)

  • Useful when space is limited (e.g., small mouth opening or treating tooth #17)

🎯 Switching between these positions during a procedure can help optimize visibility and ergonomics.


Final Thoughts: A Skill Worth Mastering

Here’s what to keep in mind:

  • Indirect vision is not optional in upper molar treatment—it's essential.

  • Don’t let your body suffer. Move the patient, not your posture.

  • Practice mirror skills intentionally—apps like Dental MirrorMaster are great for this.

  • Start with Top View, but aim to shift to Rear View for long-term efficiency.

  • Use loupes or microscopes to reduce physical fatigue and improve clinical precision.


🎓 Indirect vision is not just a technique—it’s a mindset and a strategy. Master it, and you’ll transform your clinical flow, accuracy, and even your physical well-being.
